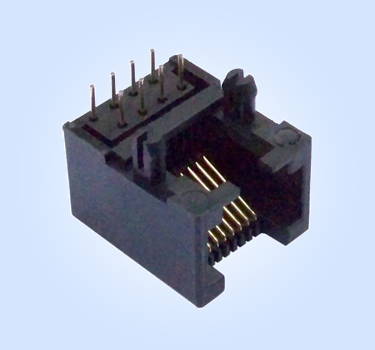

HL5301-1X1-8P Unshielded

HL5301-1X1-8P

HL5301-1X1-8P

We provide all kindls of Modular Jacks,Network Connectors,RJ11,RJ45 Modular Jacks,Jacks with Megnetic Transformer,With LED lights and filter, USB Jacks, HDMI connectors and SFP series.

Datasheet Download:
HL5301-1X1-8P

MATERIAL:
1. HOUSING MATERIAL : PBT,PA66,PA46(UL 94V-0)
2. CONTACT MATERIAL : ROUND PINS-0.46mm DIAMETER PHOSPHOR BRONZE; GOLD PLATING OVER NICKEL
ELECTRICAL/PHYSICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 30 MILLIOHMS MAX2
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500V DC
5. DIELECTRIC WITHSTANDING RISISTANCE : 1000V AC RMS 60Hz. 1MIN
6. DURABILITY : 750 CYCLES MIN
7. TEMPERATURE : -40℃ to+85℃
