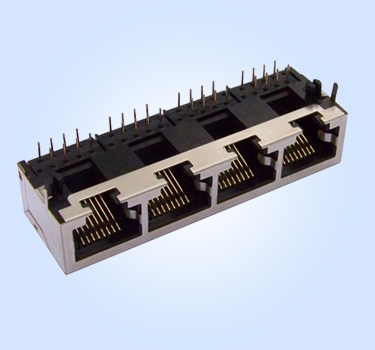

HL5602S-1X4- 10P8C Shielded

HL5602S-1X4- 10P8C

HL5602S-1X4- 10P8C

We provide all kindls of Modular Jacks,Network Connectors,RJ11,RJ45 Modular Jacks,Jacks with Megnetic Transformer,With LED lights and filter, USB Jacks, HDMI connectors and SFP series.

Datasheet Download:
HL5602S-1X4- 10P8C

MATERIAL:
1. HOUSING MATERIAL: PBT,PA66,PA46(UL 94V-0)
2. CONTACT MATERIAL : ROUND PINS-0.46mm DIAMETER PHOSPHOR BRONZE; GOLD PLATING OVERNICKEL
3. SHIELD: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED
ELECTRICAL/PHYSICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 30 MILLIOHMSMAX2
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500V DC
5. DIELECTRIC WITHSTANDING RISISTANCE : 1000V AC RMS 60Hz. 1MIN
6.DURABILITY : 750 CYCLES MIN
7. TEMPERATURE : -40℃ to+85℃
