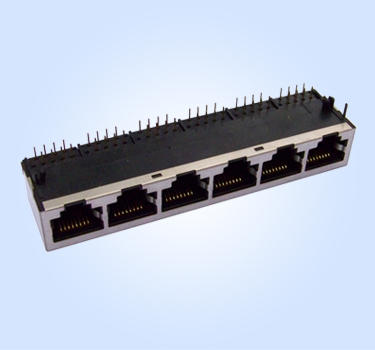

HL5901 1X6 10P8C Shielded

HL5901 1X6 10P8C

HL5901 1X6 10P8C

We provide all kindls of Modular Jacks,Network Connectors,RJ11,RJ45 Modular Jacks,Jacks with Megnetic Transformer,With LED lights and filter, USB Jacks, HDMI connectors and SFP series.

Datasheet Download:
HL5901 1X6 10P8C

MATERIAL:
1. HOUSING MATERIAL: PBT,PA66,PA46(UL 94V-0)
2. CONTACT MATERIAL : ROUND PINS-0.46mm DIAMETER PHOSPHOR BRONZE; GOLD PLATING OVERNICKEL
3. SHIELD: 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED
ELECTRICAL/PHYSICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 30 MILLIOHMSMAX2
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500V DC
5. DIELECTRIC WITHSTANDING RISISTANCE : 1000V AC RMS 60Hz. 1MIN
6.DURABILITY : 750 CYCLES MIN
7. TEMPERATURE : -40℃ to+85℃
