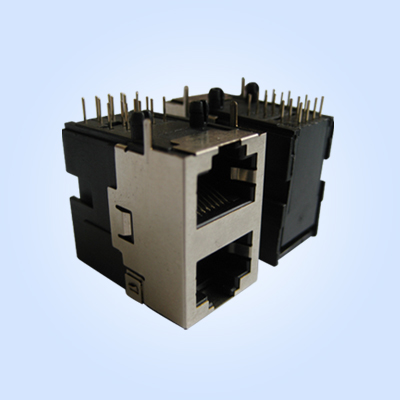

HL5902 2X1 8P8C Half-Shielded

HL5902 2X1 8P8C

HL5902 2X1 8P8C

We provide all kindls of Modular Jacks,Network Connectors,RJ11,RJ45 Modular Jacks,Jacks with Megnetic Transformer,With LED lights and filter, USB Jacks, HDMI connectors and SFP series.

Datasheet Download:
HL5902 2X1 8P8C

MATERIAL:
1. HOUSING MATERIAL : GLASS FILLED POLYESTER(UL 94V-0)
2. CONTACT MATERIAL : ROUND PINS-0.46mm DIAMETER PHOSPHOR BRONZE OR T=0.35(C5100).
3.PLATING : GOLD PLATING OVER NICKEL
4.SHIELD : 0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED
ELECTRICAL/PHYSICAL:
1. VOLTAGE RATING : 125 VAC RMS
2. CURRENT RATING : 1.5 AMP
3. CONTACT RESISTANCE : 30 MILLIOHMS MAX2
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500V DC
5. DIELECTRIC WITHSTANDING RISISTANCE : 1000V AC RMS 60Hz. 1MIN
MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2.PCB RETENTION PRE-SOLDER  1 LB MIN.
ENVIRONMENTAL
1.STOREAGE -40℃ to+85℃
2.OPERATION 0℃ to 70℃
