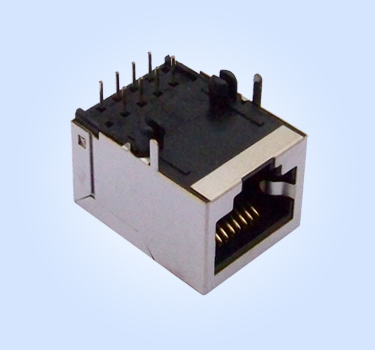

HL5901S 1X1 10P8C Shielded

We provide all kindls of Modular Jacks,Network Connectors,RJ11,RJ45 Modular Jacks,Jacks with Megnetic Transformer,With LED lights and filter, USB Jacks, HDMI connectors and SFP series.

Datasheet Download:

MATERIAL:
1. HOUSING MATERIAL:	PBT,PA66,PA46(UL 94V-0)
2. CONTACT MATERIAL :	ROUND PINS-0.46mm DIAMETER PHOSPHOR BRONZE; GOLD PLATING OVERNICKEL
3. SHIELD:	0.20mm THICKNESS COPPER ALLOY WITH NICKEL PLATED
ELECTRICAL/PHYSICAL:
1. VOLTAGE RATING :	125 VAC RMS
2. CURRENT RATING :	1.5 AMP
3. CONTACT RESISTANCE :	30 MILLIOHMSMAX2
4. INSULATION RESISTANCE :	500 MEGOHMS MIN @500V DC
5. DIELECTRIC WITHSTANDING RISISTANCE :	1000V AC RMS 60Hz. 1MIN
6.DURABILITY :	750 CYCLES MIN
7. TEMPERATURE :	-40℃ to+85℃
