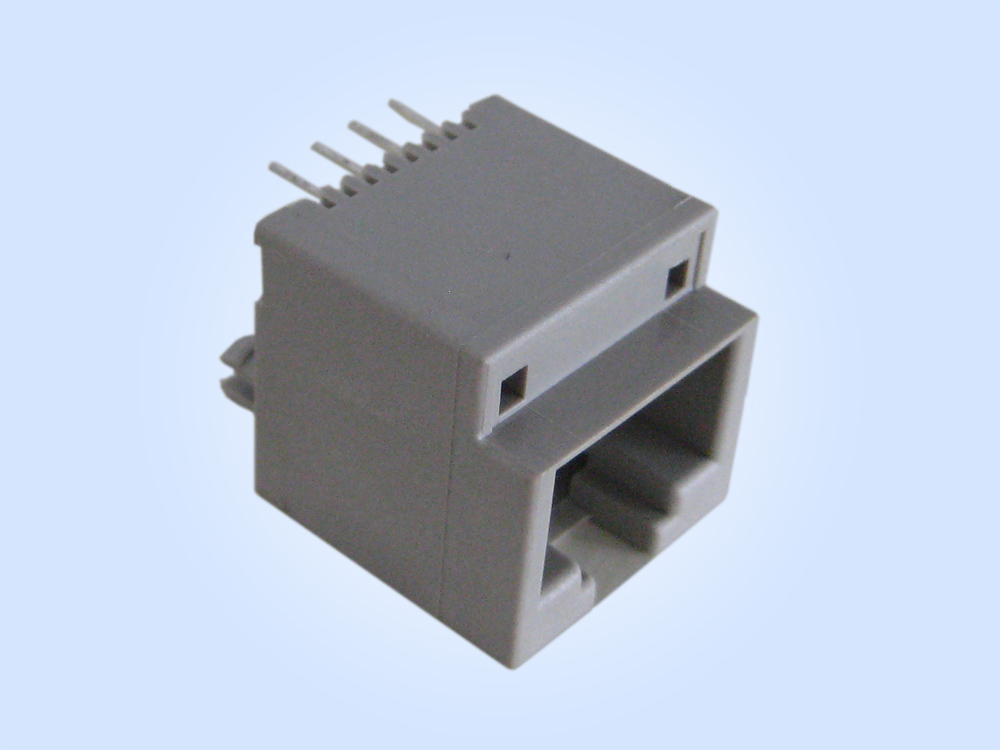

HL5206 1X1 8P
Top Entry PCB Jack RJ45 8P8C
We provide all kindls of Modular Jacks,Network Connectors,RJ11,RJ45 Modular Jacks,Jacks with Megnetic Transformer,With LED lights and filter, USB Jacks, HDMI connectors and SFP series.
Datasheet Download:
| MATERIAL: | |
| 1. HOUSING MATERIAL: | PBT,PA66,PA46(UL 94V-0) |
| 2. CONTACT MATERIAL : | ROUND PINS-0.46mm DIAMETER PHOSPHOR BRONZE; GOLD PLATING OVER NICKEL |
| ELECTRICAL/PHYSICAL: | |
| 1. VOLTAGE RATING : | 125 VAC RMS |
| 2. CURRENT RATING : | 1.5 AMP |
| 3. CONTACT RESISTANCE : | 30 MILLIOHMSMAX2 |
| 4. INSULATION RESISTANCE : | 500 MEGOHMS MIN @500V DC |
| 5. DIELECTRIC WITHSTANDING RISISTANCE : | 1000V AC RMS 60Hz. 1MIN |
| 6.DURABILITY : | 750 CYCLES MIN |
| 7. TEMPERATURE : | -40℃ to+85℃ |
